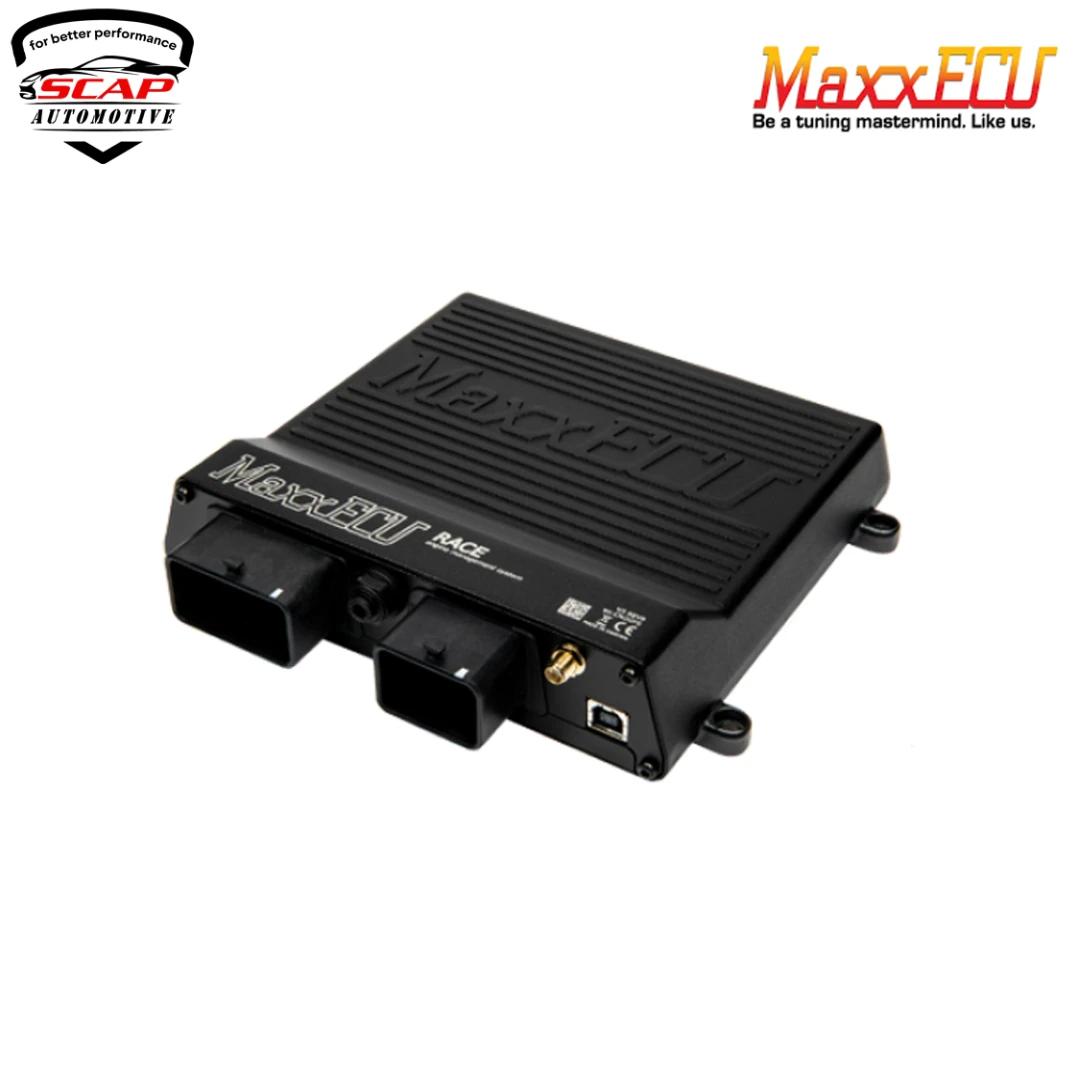

MAXX-ID1786 MAXX ECU RACE PREMIUM (SKU 42-081)

Target engines of MaxxECU RACE

    All 1-12 cylinder engines (4-stroke)
    Up to 8 cylinders fully sequentially
    Up to 12 cylinders in wasted spark

MaxxECU RACE inputs

    Intake air temperature sensor (IAT)
    Coolant temperature sensor (CLT)
    Throttle position sensor (TPS)
    Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9
    2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
    2 extra temperature sensors. Can be used as switches or control of additional functions
    2 knock sensor inputs
    6 extra 0-5V inputs. Can be used for additional sensors such as measurement oil/fuel pressure
    4 extra digital inputs used for example speed sensors (VR / Hall) or switches
    8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness

MaxxECU RACE outputs

    8 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output
    8 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
    9 extra LOW DRIVING outputs for additional features. Can be adjusted to control virtually anything like fuel pumps, idle valves. GPO 1-8,10 (2A), GPO 9 (5A)
    2 extra +12V DRIVING outputs (GPO 15,16) (2A)
    4 extra motor outputs (ex E-Throttle). GPO 11-14 (2A)

MaxxECU RACE technical

    CAN bus for expansion modules, OEM vehicle CAN, OBDII
    USB communication for tuning with MTune
    Bluetooth for connecting to mobile devices with MDash
    8MB memory for internal logging, up to 1000Hz.
    Supply voltage 8-22V
    ARM Cortex-M3 120MHz main processor. Three extra processors to handle the trigger, injectors and knock detection
    Resolution on ignition: 0.1 degrees
    Resolution on injectors: 0.001 ms
    Updates the fuel and ignition calculations 2000 times per second
    The fastest PC communication on the market
    50Hz sampling rate on all EGT inputs
    1000Hz sampling rate on all analog inputs
    Weight: 880g
    155x195x40mm (including mounting points, excluding connector)

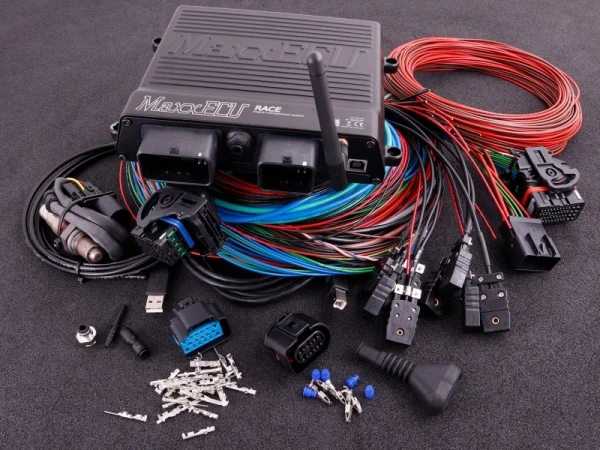

Contents:
MaxxECU Race incl. MaxxECU Universal Wiring Harness 1 and 2
Bosch LSU 4.2 (4.9 available on request)
MaxxECU USB Cable
MaxxECU map sensor connection hardware
